Scentony: A Device for dynamic scent mixing
Client
University Project
Donated to the NoseWise research team
Duration
1 month – 2019
Challenge
Despite smell being one of the most emotional and powerful senses, olfactory interaction is rarely explored in Human–Computer Interaction (HCI).
Existing scent displays fall into two camps:
Simplistic: only dispensing predefined scents.
High-cost & proprietary: inaccessible for researchers, with little flexibility.
What was missing was an affordable, open-source system that allowed dynamic scent mixing in real time — the ability to “compose” smells as fluidly as sound or color.pensive and proprietary, lacking the flexibility to dynamically mix scents in real time.
SOLUTION
We developed Scentony, a low-cost, open-source scent display that enables users to mix and modulate up to four scents live, like an RGB mixer for smells.
It created new opportunities for research, perfumery, and multisensory experiences (e.g., gaming, training, therapy) by enabling dynamic, real-time olfactory interaction.
Phases
phase one
Goals
Dive in the olfactory interaction literature, and find research and commercial scent-mixing devices.
Takeaway
There’s no affordable tool for real-time, proportionally controlled scent mixing that researchers or designers can easily experiment with.
Literature Review
Surveyed research on olfactory interaction, plus commercial/experimental scent devices:
Unlike sound or vision, smell doesn’t reduce to “primary elements” (e.g., RGB, frequencies). It is nonlinear, context-dependent, and unpredictable.

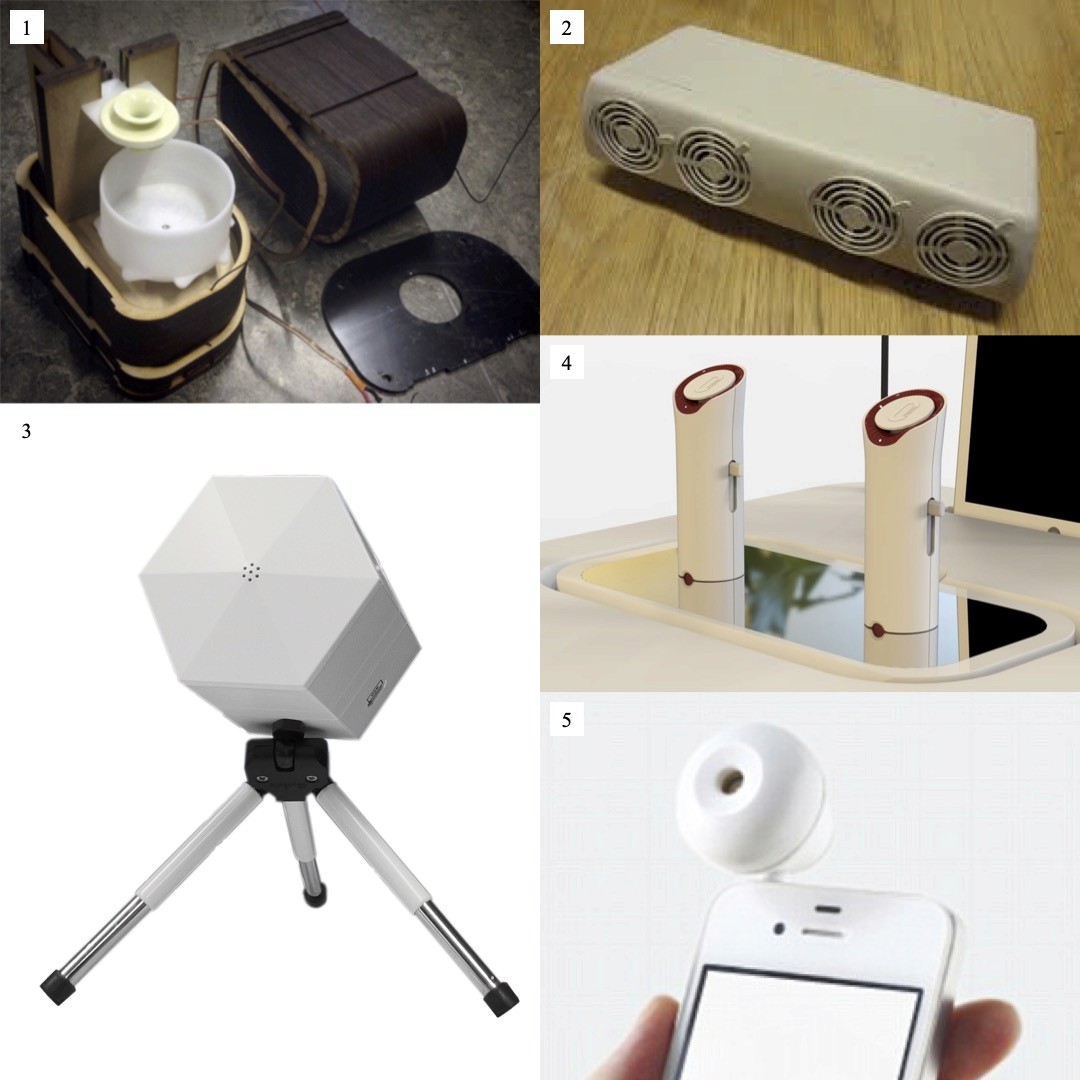

None of the existing devices allowed for custom ratios or dynamic blending:
Hajukone (1): mechanical revolver, no mixing.
Vortex Active (2), Aroma Shooter (3): multiple scents, but only equal intensities.
oPhone Duo (4), Scentee Balloon (5): large libraries, but no live mixing.
Takeaway
Instead of simulating all possible smells, the device should provide a flexible system for blending carefully chosen scent components in real time.
Opportunity Space
Gaming: integrate scent into gameplay mechanics (e.g., detective tracking).
Research & Therapy: affordable scent training tools for clinicians.
Perfumery: live prototyping of blends instead of manual evaporation tests.
phase Two
Prototyping
Prototypes explored how to mix, vaporise, and deliver scents effectively.

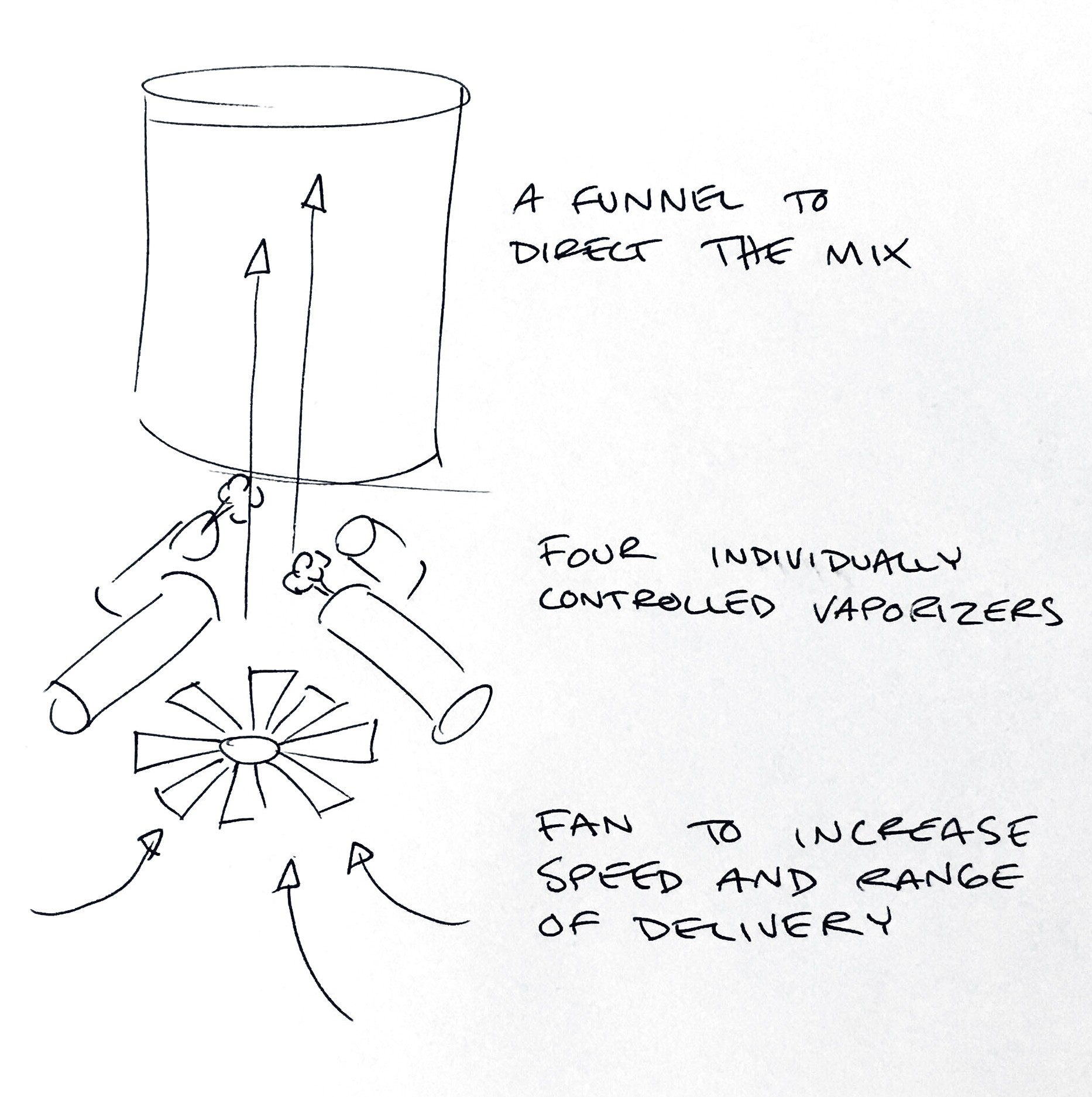

Key functions to prototype
Scent solutions: mixing essential oils in alcohol base in different percentages until achieving the ideal mix
Vaporisation technique: experimenting with piezo dispensers
Delivery: the fanning and tubing system
Input: a way for users to mix the scents
Microcontroller: to control and bring the different element together

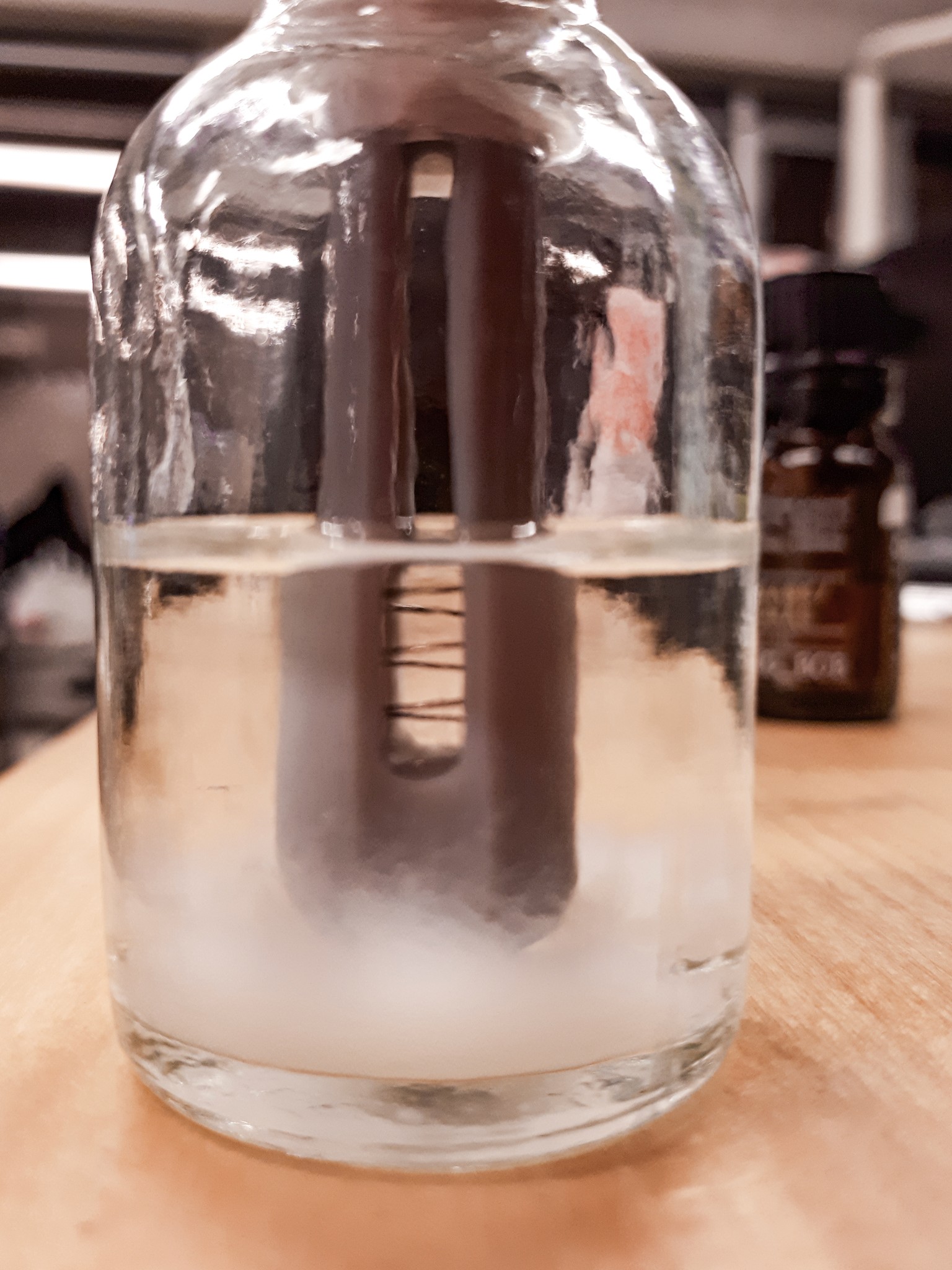

Scent solutions
Essential oils in perfumer’s alcohol (ethanol) base.
Tested a range of concentrations to balance subtlety and recognisability.
Vaporisation technique
A vaporising device is needed to be small, easily controlled and responds quickly
Tested multiple options; ultrasonic piezos chosen as the best fit..
Learning: cheap components cost more in time/frustration when debugging.
Scent Delivery
A type of funnel is needed for the scents to mix in and get directed

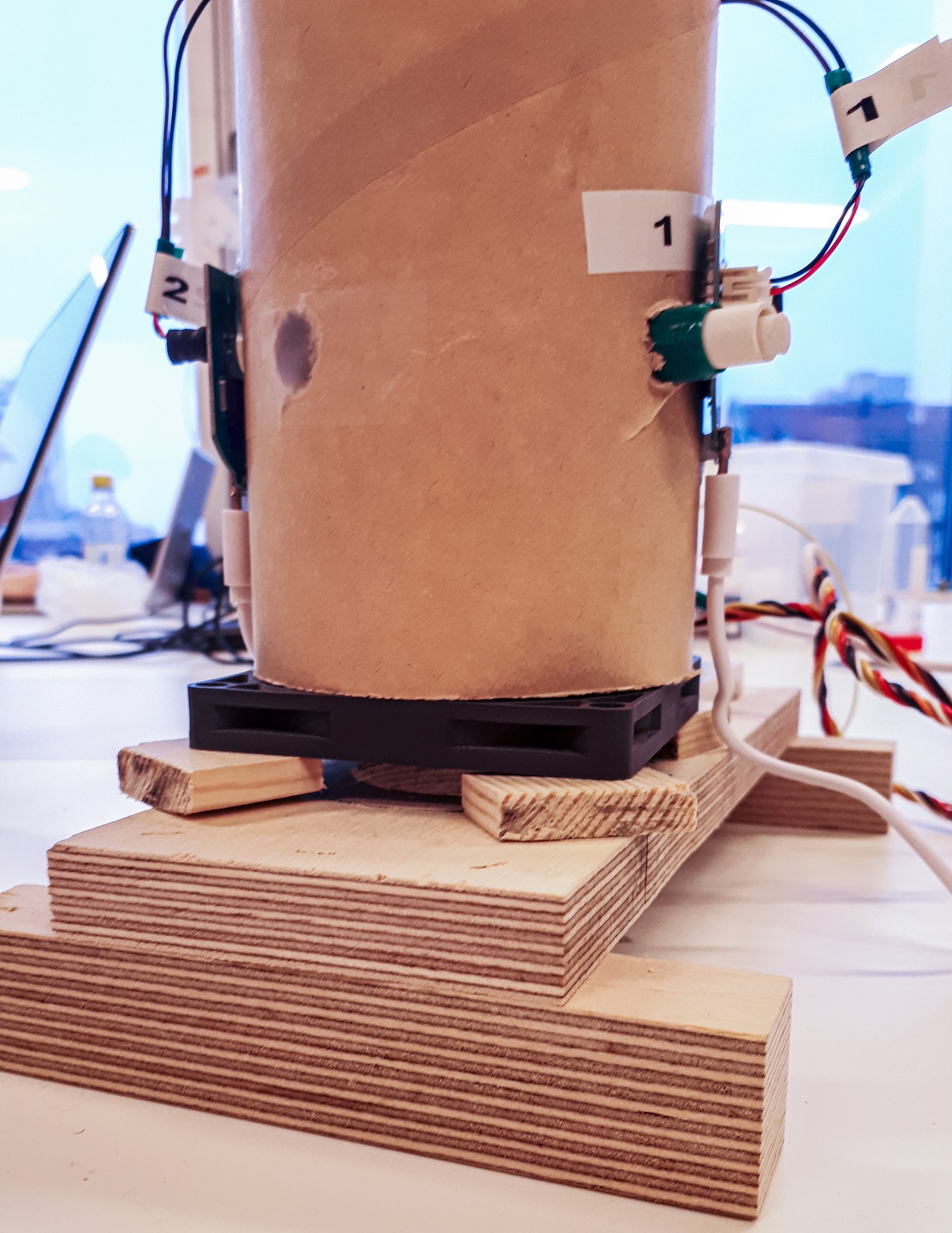

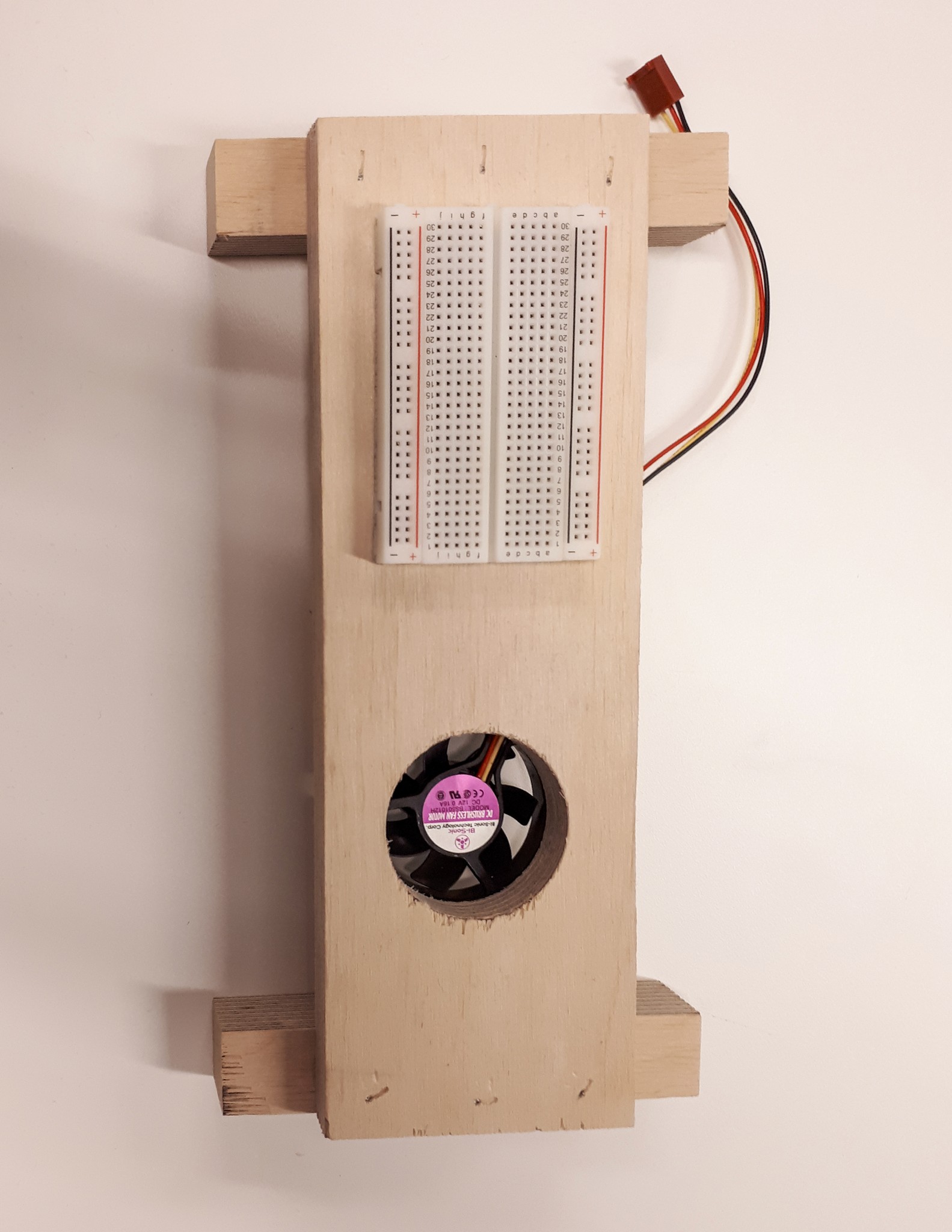

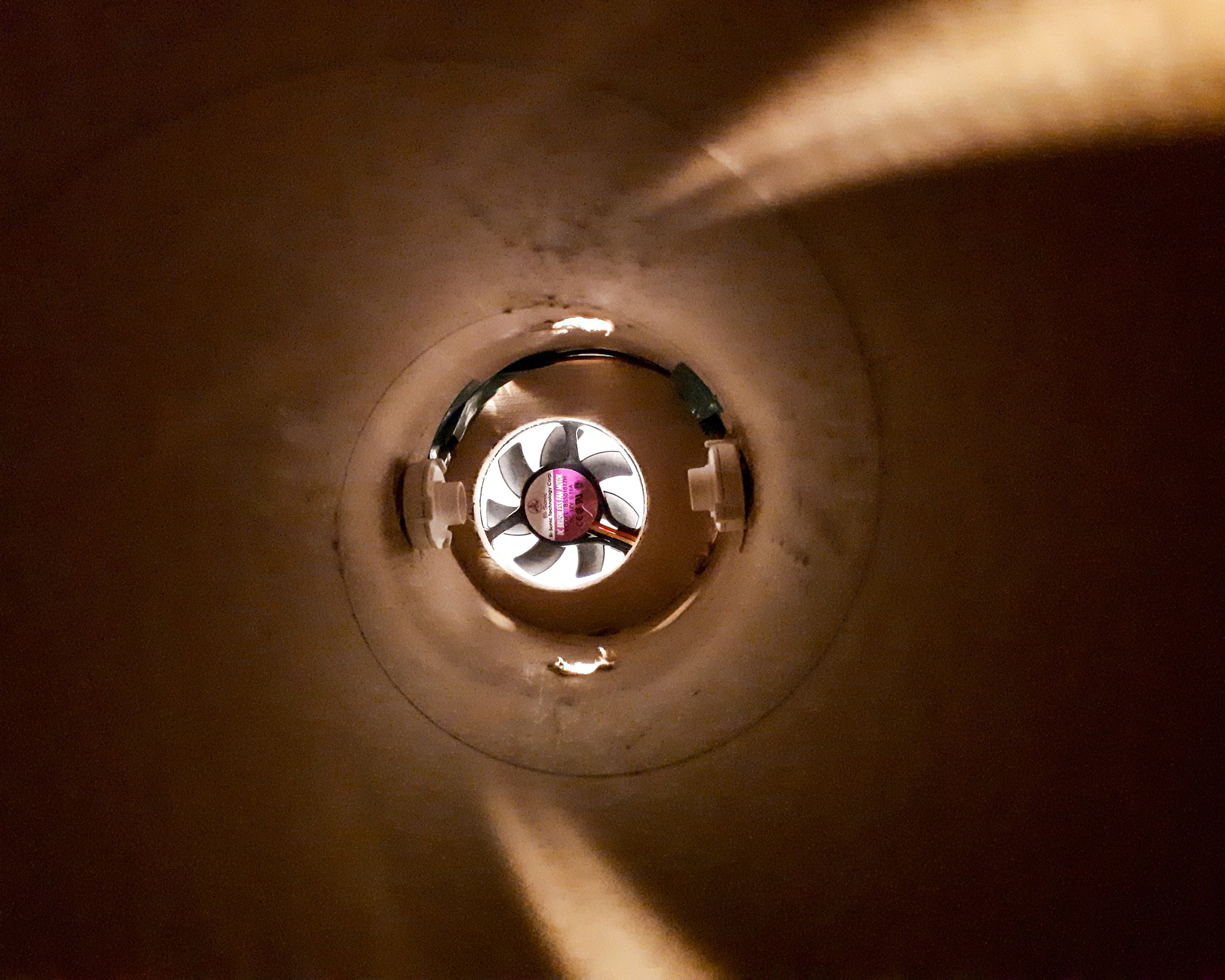

Placement of fan critical: affected scent mixing and latency.

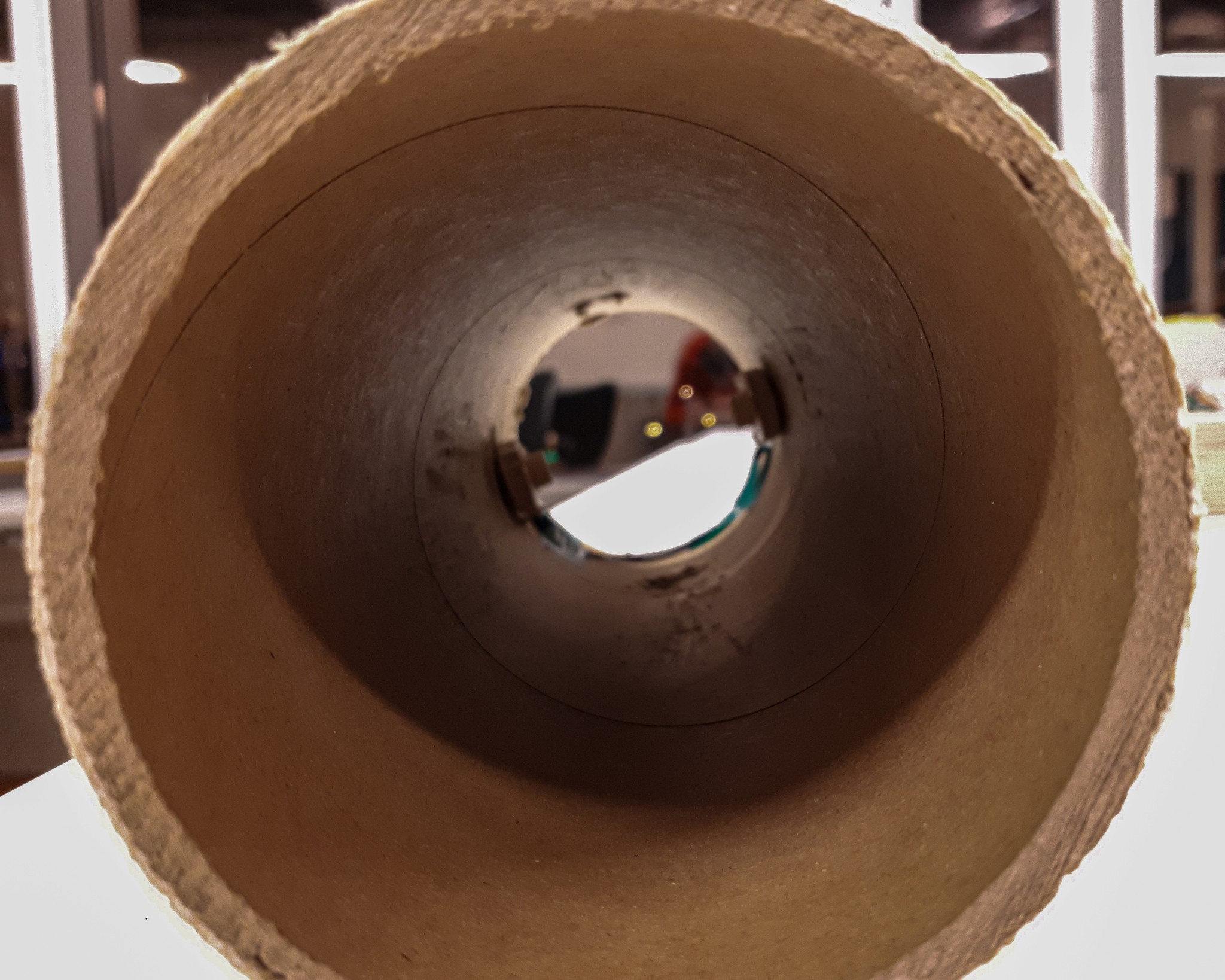

To test different placements, we needed an easily manipulable material and found hard cardboard to be a good choice
Learning: prioritising iterative low-fi prototyping saves time and reveals hidden challenges early.

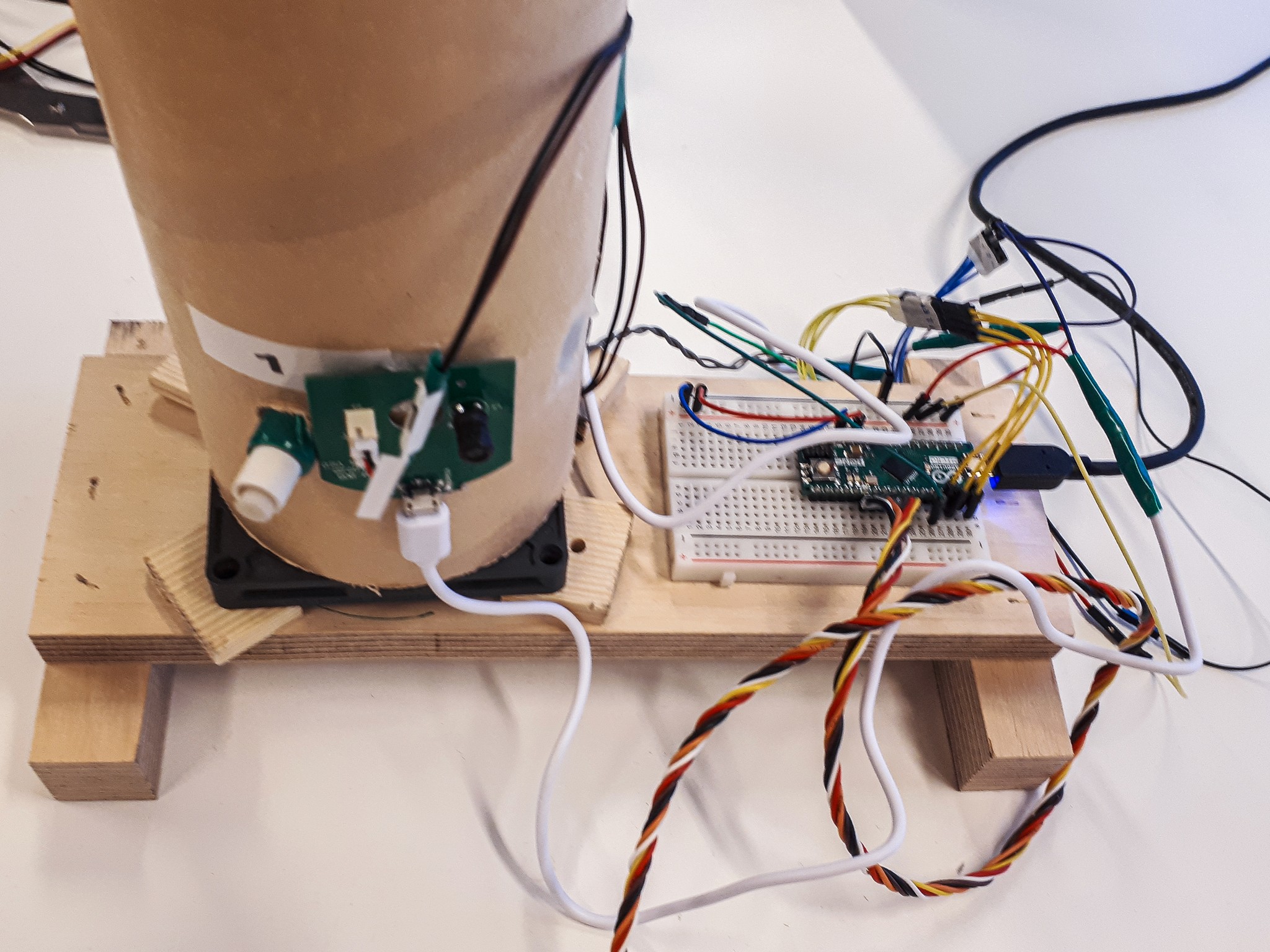

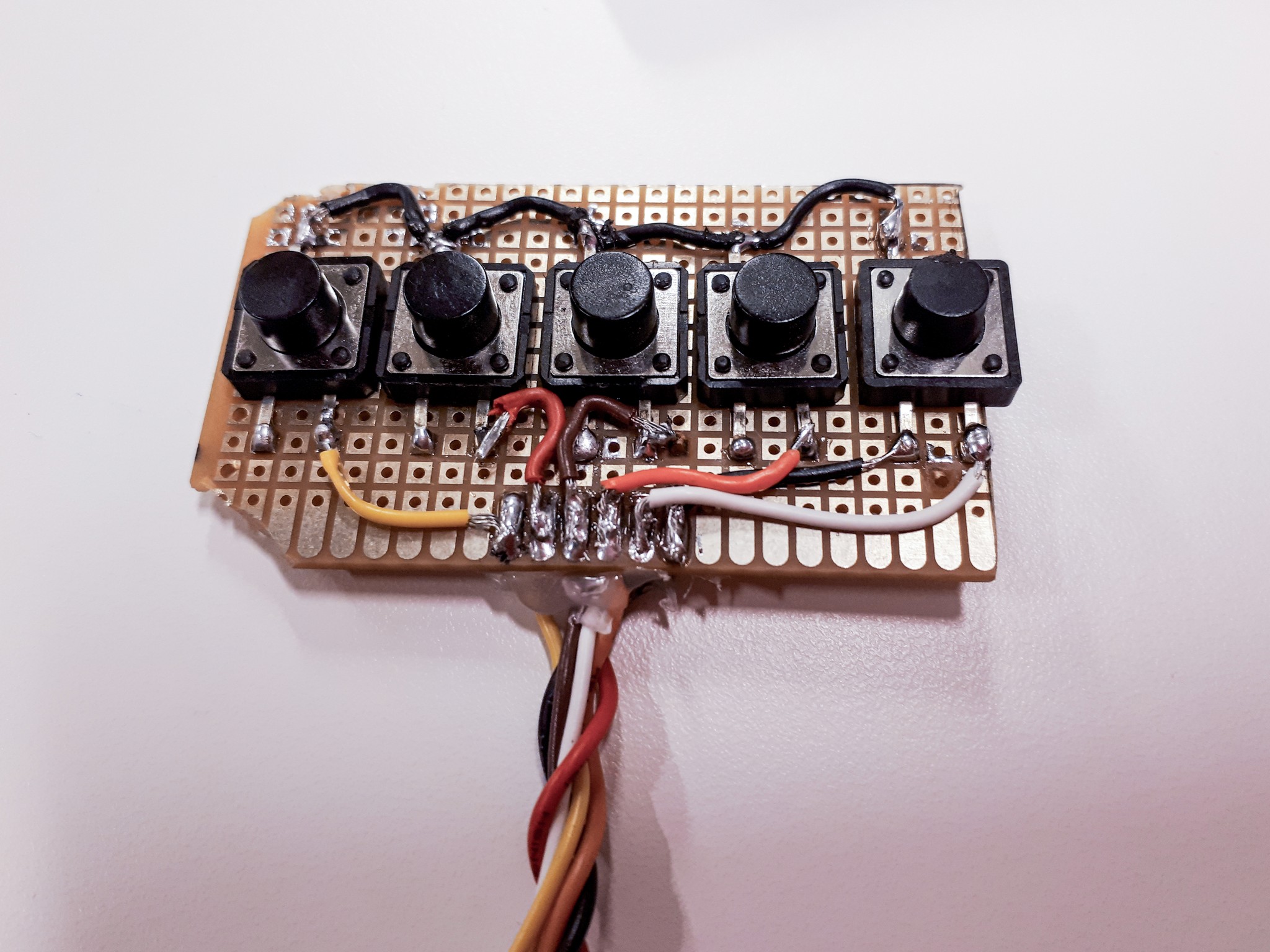

Input & Microcontroller
Chose Arduino Micro for compact size and expandability.
Limited test setup to two scents + 5 preprogrammed mixes (0–100, 25–75, 50–50, 75–25, 100–0).
Learning: prototyping is a science expirement where one has to control variables and eliminate any extra features that could influence the tested subject
phase three
Usability Testing
Goal
Test accuracy of scent mixing and delivery system.
The input device and aesthetics were intentionally undermined to drive attention away from them.
setup
8 user sessions.
Tasks:
Identify base scents individually.
Identify randomised mixes (15 trials each, some repeated to avoid bias).
Logged accuracy, recognition time, and qualitative feedback.
Findings
Mixing: Users correctly identified dominant-ratio mixes (0–100, 25–75, 75–25, 100–0).
50–50 mix often confused for a “new scent.”
Proof that the system achieved true blending rather than overlay.
Delivery:
Fan at bottom: poor mixing, delays.
Fan at top: created a vortex, improved blending speed.
Other notes: Cardboard tube absorbed scent → background smell interference.
phase Four
The findings from the testing resulted in improvements to the design.
User-driven improvements

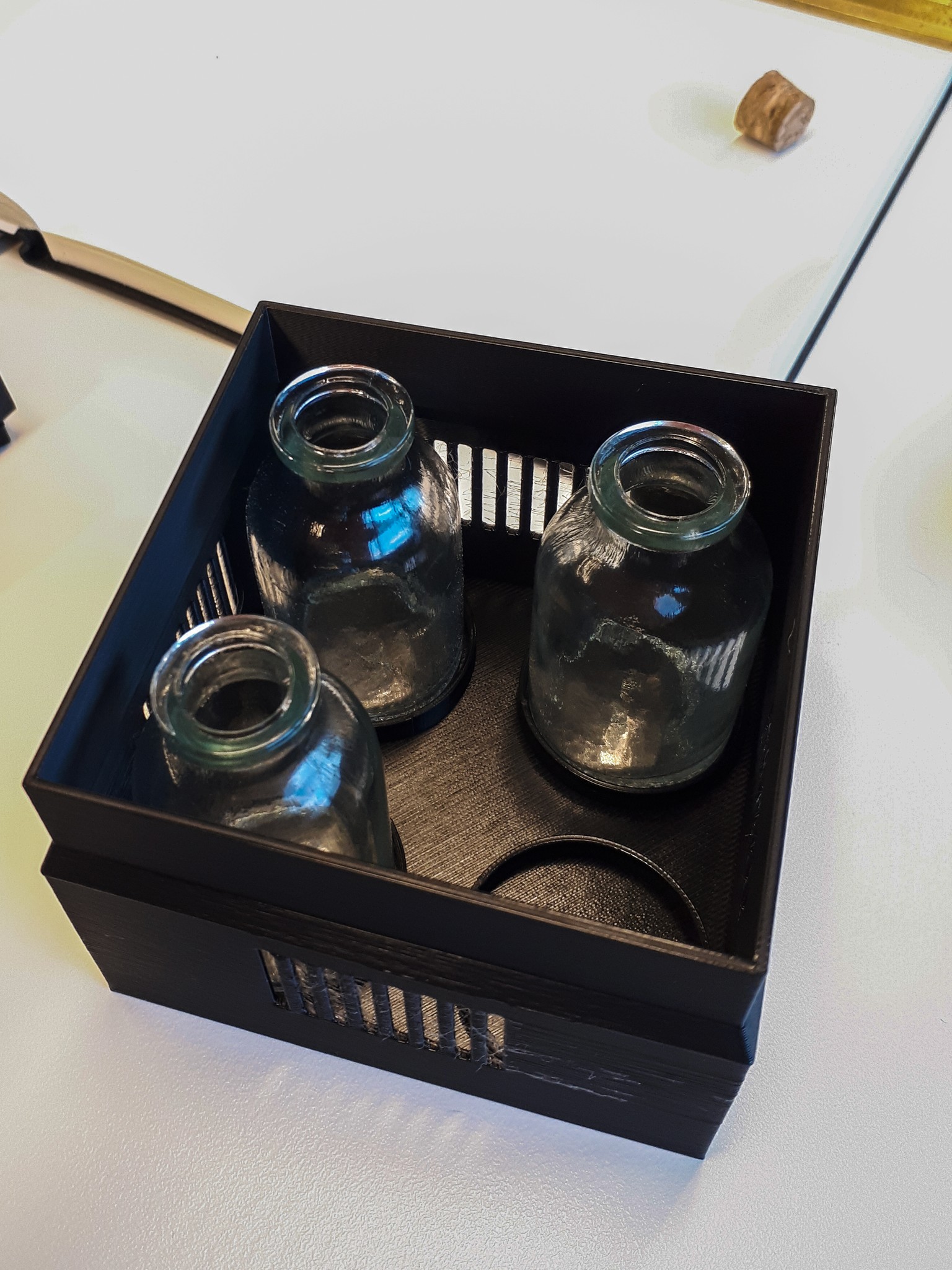

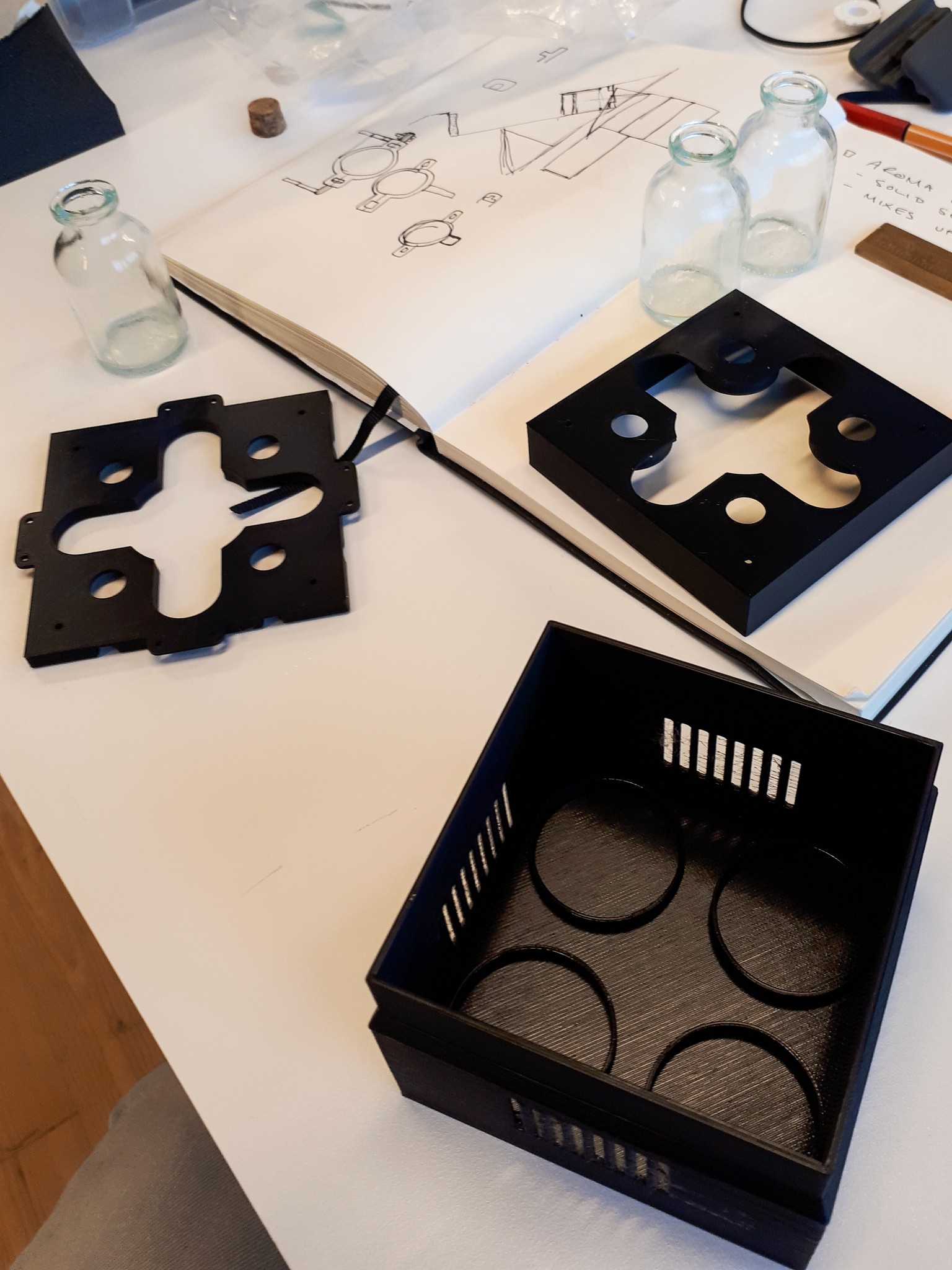

Placing scent bottles on one horizontal level.
Switching to less absorbent materials.
Moving fan placement to top of funnel.

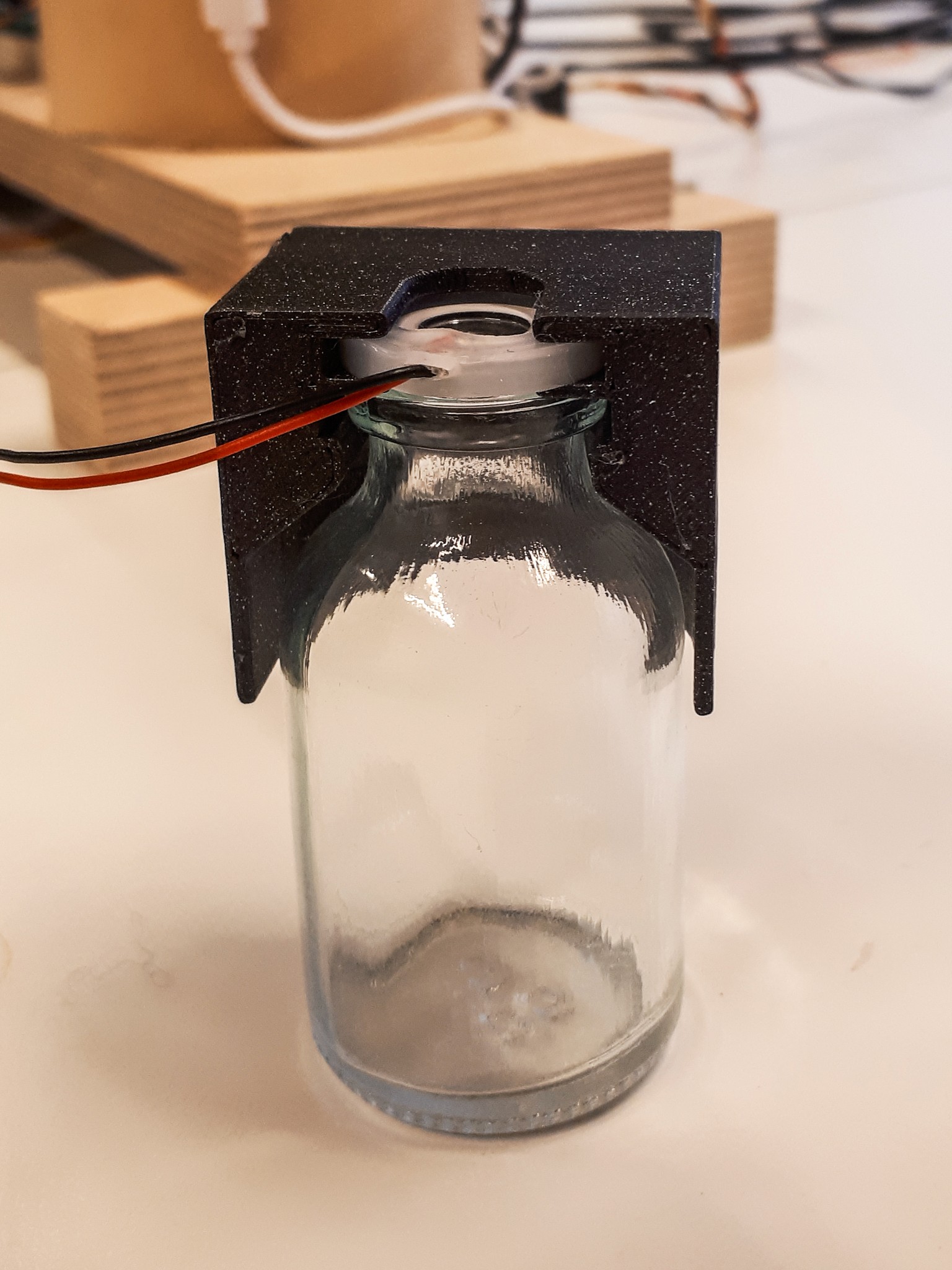

Isolating piezos from bottles (custom holders).

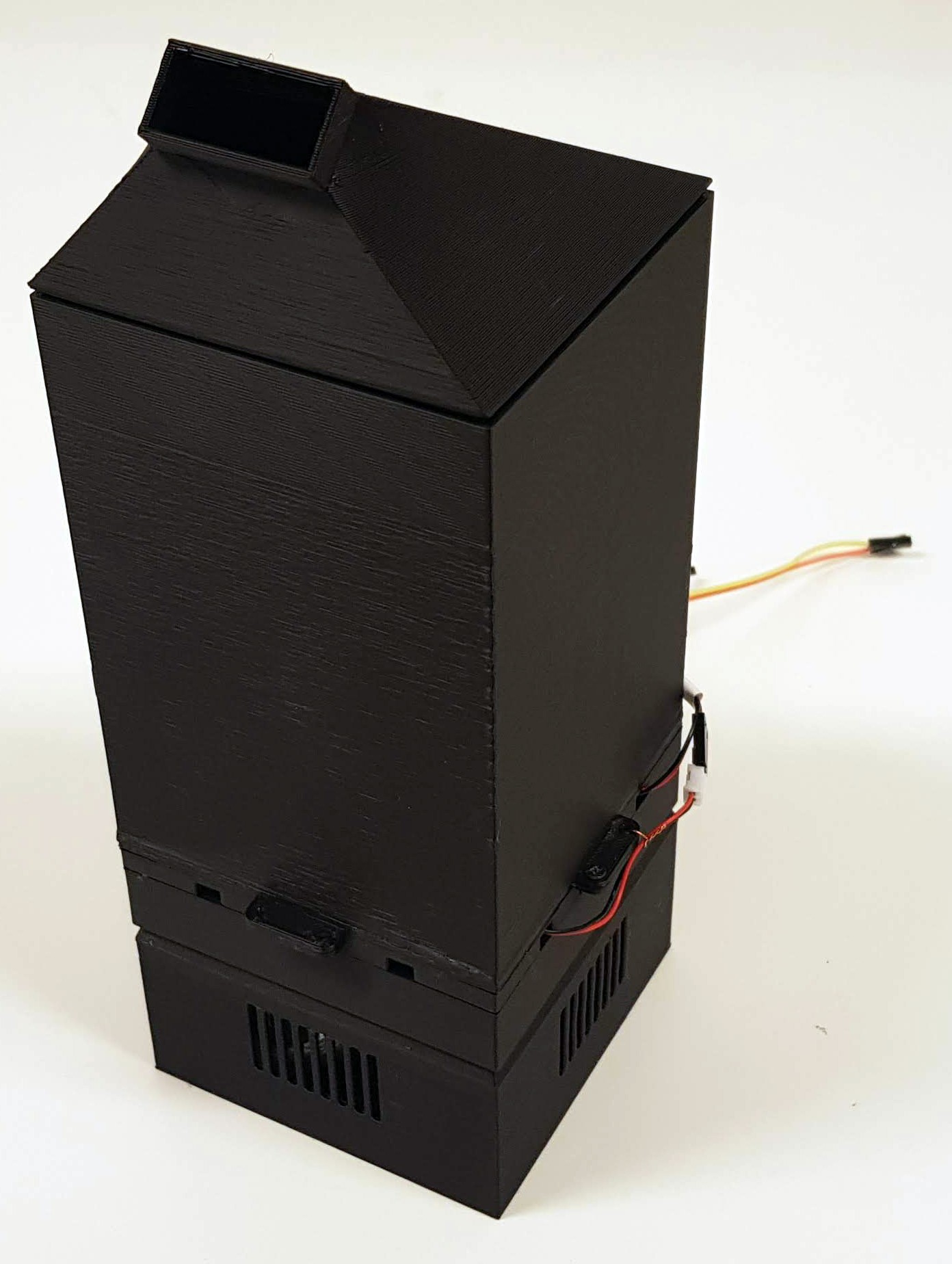

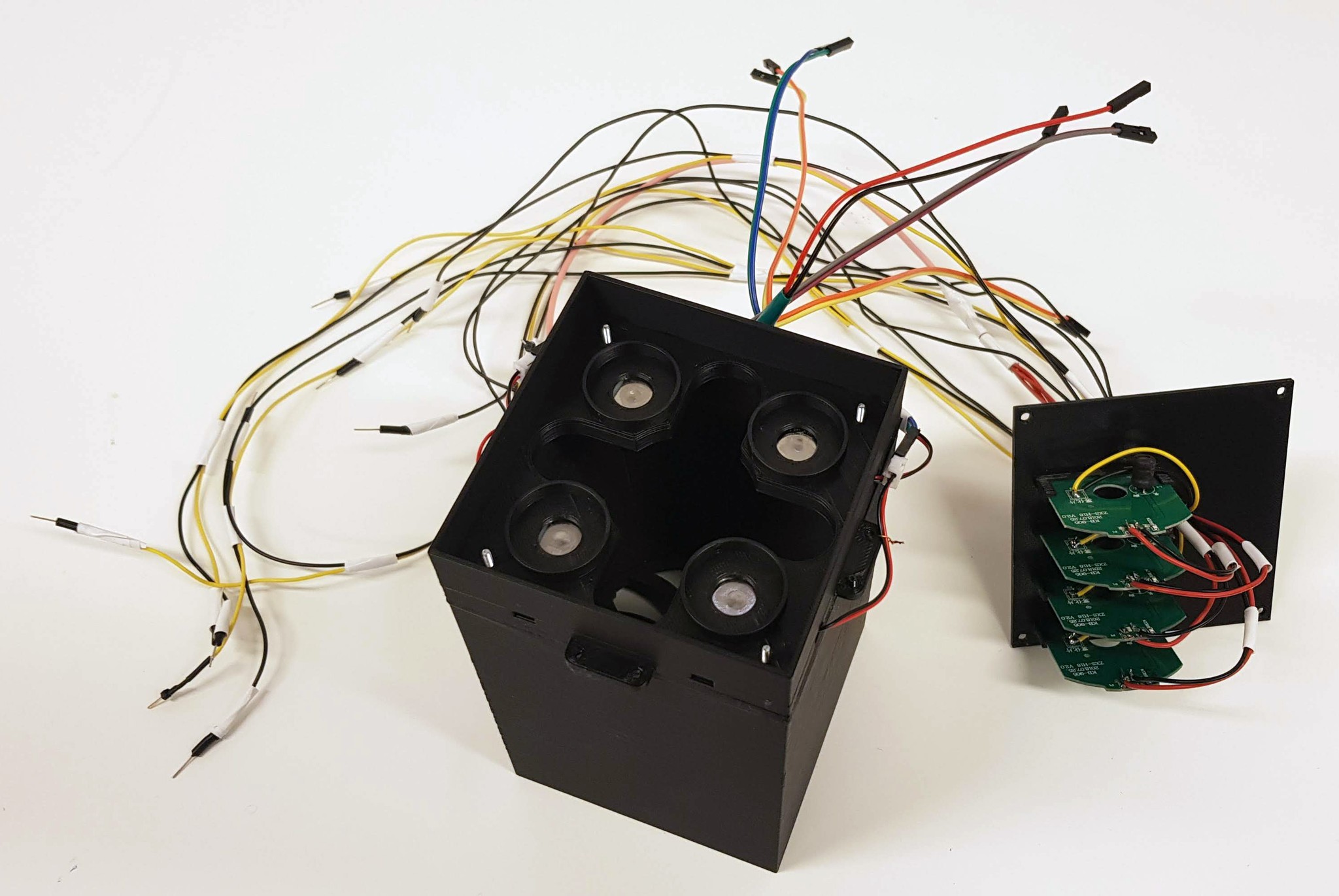

Clear, modular setup: up to 4 bottles inserted, scents delivered via cotton sticks to piezos.
The workflow
The user's setup journey consists of the following steps:
Insert bottles into numbered slots (up to 4).
Place the funnel of the device on top of the scents' holder box.
Plug in.
Use buttons to select preprogrammed mixes.
Optional funnels added depending on use case.
phase Five
Future Iterations
WiFi module for digital control and data-driven mixing.
Alternative inputs (potentiometers, sliders, sensors).
Impact
Donated to Malmö & Stockholm University’s NoseWise olfactory research project.
Featured in a co-authored paper at ACM CHI 2023 on olfactory devices.
Reflection
Through Scentony, I learned to:
Work within the constraints of nonlinear, unpredictable sensory design.
Developing a tangible product from start to finish.
Use iterative low-fi prototyping to resolve engineering challenges early.
Apply controlled user testing to evaluate highly subjective experiences like smell.
Deliver an open-source, flexible prototype that researchers and designers can build upon.
